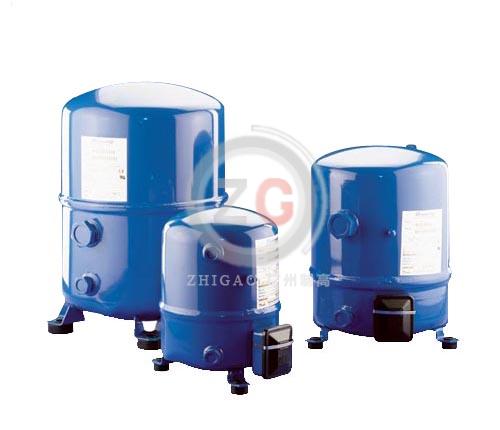

Maneurop piston compressor MTZ160-4VM with gas R507
  • Product Name:Maneurop piston compressor MTZ160-4VM with gas R507
  • Product Item:
  • Unit Price:0/
  • Minimum Order:0
  • Product Payment:

Maneurop piston compressor MTZ160-4VM with gas R507

Feature:



1. High efficiency.
2.Good reliability.
3.Low noise, low vibration.
4.Oiginal and new.



Specifications:



1.MT series for R22
2. MTZ series for R407c



1.50 HZ

2. Imported form France.

3.2900r/min

4.R22 Rated condition:50Hz 400V

superheat:11.1K

subcooling 8.3K condensing temp:54.4°C



5.R407C Rated condition :50Hz 400V

superheat:11.1K

subcooling 8.3K condensing temp:54.4°C

evaporating temp.7.2°C



refrigeration and power input±5%



Technical sheet:



Model Volt Gas W
(refrigerating
capacity)
KW
(Input)
A COP
(W/W)
Cylinder
number
Fuel
charge
KG/PC
MT28-4VM 380V R22 7378 2.55 4.56 2.89 1 0.95 24.5
MT28-5VM 220V R22 7378 2.55 4.56 2.89 1 0.95 23
MT32-4VM 380V R22 8064 2.98 4.97 2.7 1 0.95 25
MT36-4VM 380V R22 9272 3.37 5.77 2.75 1 0.95 25.5
MT36-5VM 220V R22 9272 3.37 5.77 2.75 1 0.95 25.5
MT40-4VM 380V R22 10475 3.85 6.47 2.72 1 0.95 26
MT44-4VM 380V R22 11037 3.89 7.37 2.84 2 1.8 36
MT50-4VM 380V R22 12324 4.32 8.46 2.85 2 1.8 37
MT56-4VM 380V R22 13771 5.04 10.27 2.73 2 1.8 37
MT64-4VM 380V R22 15820 5.66 9.54 2.79 2 1.8 37.5
MT72-4VM 380V R22 17124 6.31 10.54 2.71 2 1.8 39
MT80-4VM 380V R22 19534 7.13 11.58 2.74 2 1.8 42
MT100-4VM 380V R22 23403 7.98 14.59 2.93 4 3.9 66.5
MT125-4VM 380V R22 30429 10.66 17.37 2.85 4 3.9 68
MT160-4VM 380V R22 38273 13.39 22.16 2.86 4 3.9 69

Model V Gas W(refrigerating
capacity)
KW(Input) A COP(W/W) cylinder
number
fuel charge KG
MTZ36-4VM 380V R404A/R507 4371 2.66 4.91 1.64 1 0.95 25.5
MTZ36-5VM 220V R404A/R507 4371 2.66 4.91 1.64 1 0.95 25.5
MTZ64-4VM 380V R404A/R507 8132 4.54 8.3 1.79 2 1.8 37.5
MTZ72-4VM 380V R404A/R507 9153 4.99 8.64 1.84 2 1.8 39
MTZ80-4VM 380V R404A/R507 10524 5.84 10.12 1.8 2 1.8 42
MTZ100-4VM 380V R404A/R507 12020 6.83 12.16 1.76 4 3.9 66.5
MTZ160-4VM 380V R404A/R507 20253 11 17.94 1.84 4 3.9 69
