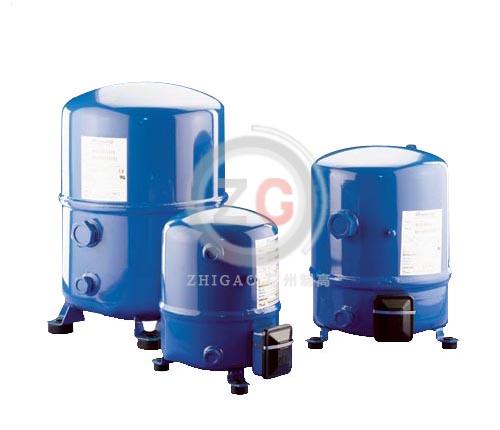

MTZ36 Maneurop Scroll Compressor For Refrigeration
Maneurop compressor,MT series,MTZ series.
Refrigerant:R134a,R404a,R507,R407c
Feature:
1. High efficiency.
2.Good reliability.
3.Low noise, low vibration.
4.Oiginal and new.
Specifications:
1.MT series for R22
2. MTZ series for R407c
1.50 HZ
2. Imported form France.
3.2900r/min
4.R22 Rated condition:50Hz 400V
superheat:11.1K
subcooling 8.3K condensing temp:54.4°C
5.R407C Rated condition :50Hz 400V
superheat:11.1K
subcooling 8.3K condensing temp:54.4°C
evaporating temp.7.2°C
refrigeration and power input±5%
Technical sheet:
Code no. | HP | MT-R22 | MTZ-R407C | MTZ-R134a | MTZ-R404 | ||||||||
Kw | BTUH | EER | Kw | BTUH | EER | Kw | BTUH | EER | Kw | BTUH | EER | ||
MT/MTZ18 | 1.5 | 1.74 | 15900 | 9.15 | 1.67 | 15300 | 9.13 | 1.22 | 11200 | 9.2 | 1.76 | 10300 | 5.1 |
MT/MTZ22 | 2 | 2.27 | 22000 | 9.68 | 2.17 | 19600 | 9 | 1.54 | 14800 | 9.63 | 2.05 | 14100 | 6.01 |
MT/MTZ28 | 2.5 | 3.07 | 30200 | 9.86 | 2.83 | 25100 | 8.9 | 2.04 | 19300 | 9.42 | 2.68 | 18300 | 5.96 |
MT/MTZ32 | 2.75 | 3.58 | 33000 | 9.22 | 3.21 | 28400 | 8.86 | 2.39 | 20900 | 8.76 | 2.99 | 20100 | 5.85 |
MT/MTZ36 | 3 | 4.05 | 38000 | 9.38 | 3.75 | 32700 | 8.73 | 2.75 | 24500 | 8.91 | 3.34 | 23200 | 6.05 |
MT/MTZ40 | 3.5 | 4.63 | 42900 | 9.27 | 4.33 | 37400 | 8.64 | 3.08 | 27900 | 9.03 | 3.77 | 26400 | 6.11 |
MT/MTZ44 | 4 | 4.67 | 45200 | 9.69 | 4.37 | 43000 | 9.84 | 3.14 | 29800 | 9.51 | 4.18 | 27800 | 6.65 |
MT/MTZ50 | 4.5 | 5.18 | 50500 | 9.74 | 4.96 | 48100 | 9.71 | 3.6 | 34500 | 9.57 | 4.83 | 32500 | 6.73 |
MT/MTZ56 | 5 | 6.05 | 56400 | 9.32 | 5.67 | 54300 | 9.59 | 3.95 | 38000 | 9.62 | 5.44 | 36500 | 6.71 |
MT/MTZ64 | 5.5 | 6.8 | 64800 | 9.53 | 6.36 | 60400 | 9.5 | 4.68 | 45300 | 9.66 | 6.12 | 41500 | 6.78 |
MT/MTZ72 | 6 | 7.58 | 70100 | 9.26 | 7.22 | 67900 | 9.41 | 5.19 | 50000 | 9.63 | 6.91 | 46500 | 6.72 |
MT/MTZ80 | 7 | 8.56 | 80000 | 9.35 | 8.24 | 76900 | 9.33 | 6 | 56500 | 9.42 | 8.03 | 52500 | 6.54 |
MT/MTZ100 | 9 | 9.59 | 95900 | 10 | 9.9 | 94400 | 9.53 | 6.5 | 63900 | 9.84 | 8.72 | 60800 | 6.07 |
MT/MTZ125 | 10 | 12.81 | 124600 | 9.73 | 12.62 | 122100 | 9.67 | 7.72 | 78900 | 10.22 | 11.37 | 78400 | 6 |
MT/MTZ144 | 12 | 14.36 | 140700 | 9.8 | 14.47 | 137200 | 9.48 | 9.82 | 96900 | 9.87 | 13 | 92300 | 6.19 |
MT/MTZ160 | 13.5 | 16.09 | 156800 | 9.75 | 16.67 | 155100 | 9.31 | 10.92 | 107600 | 9.85 | 14.74 | 100300 | 5.93 |
